IAM Roles and AWS Tools

IAM permissions will allow our EC2 to execute commands affecting our S3 bucket. The issue is that my IAM role does a whole lot, and I don't want to jump the gun, but it's probably best for you to use my full IAM role now. Trust me bro.

Creating the IAM Role

Go to the IAM AWS service, and create a new role. Follow this config:

AWS Service trusted entity type
EC2 Use Case
Select AmazonS3FullAccess as a default service. These are just pre-built policies.
Create the role.

Adding Inline Policies

Now in the list of all the roles, click your role. Go to Add permissions and select Create inline policy. This allows you to paste in a JSON.

OcapS3WritePolicy

The first policy is called OcapS3WritePolicy. Here it is:

OcapS3WritePolicy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AllowListBucket",
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:ListBucketMultipartUploads"
            ],
            "Resource": "arn:aws:s3:::elephant-bucket-ocap-recordings"
        },
        {
            "Sid": "AllowOcapReadWriteToSpecificBucket",
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:GetObject",
                "s3:DeleteObject",
                "s3:ListMultipartUploadParts",
                "s3:AbortMultipartUpload"
            ],
            "Resource": "arn:aws:s3:::elephant-bucket-ocap-recordings/*"
        }
    ]
}

This basically allows upload to S3, including multi-part uploading. I'm not exactly sure the use case for that, but I assume that if a file is too big, it will upload it in chunks. I'm not sure the threshold, but it's good to have.

Note - Update Bucket Name

Replace elephant-bucket-ocap-recordings with your actual bucket name in the policy above.

DynamoDB Read Policy

This next role is called all-dynamo-db-read. It just provides full permissions for an EC2 to read a DynamoDB table. Again, my roles are kind of a mess, if you aren't in a crunch you can probably be a bit more elegant.

all-dynamo-db-read

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "dynamodb:DescribeImport",
                "dynamodb:DescribeContributorInsights",
                "dynamodb:ListTagsOfResource",
                "dynamodb:*",
                "dynamodb:GetAbacStatus",
                "dynamodb:DescribeReservedCapacityOfferings",
                "dynamodb:PartiQLSelect",
                "dynamodb:DescribeTable",
                "dynamodb:GetItem",
                "dynamodb:DescribeContinuousBackups",
                "dynamodb:DescribeExport",
                "dynamodb:GetResourcePolicy",
                "dynamodb:DescribeKinesisStreamingDestination",
                "dynamodb:DescribeLimits",
                "dynamodb:BatchGetItem",
                "dynamodb:ConditionCheckItem",
                "dynamodb:Scan",
                "dynamodb:Query",
                "dynamodb:DescribeStream",
                "dynamodb:DescribeTimeToLive",
                "dynamodb:ListStreams",
                "dynamodb:DescribeGlobalTableSettings",
                "dynamodb:GetShardIterator",
                "dynamodb:DescribeGlobalTable",
                "dynamodb:DescribeReservedCapacity",
                "dynamodb:DescribeBackup",
                "dynamodb:DescribeEndpoints",
                "dynamodb:GetRecords",
                "dynamodb:DescribeTableReplicaAutoScaling"
            ],
            "Resource": "*"
        }
    ]
}

Cool. You should have three policies in your role.

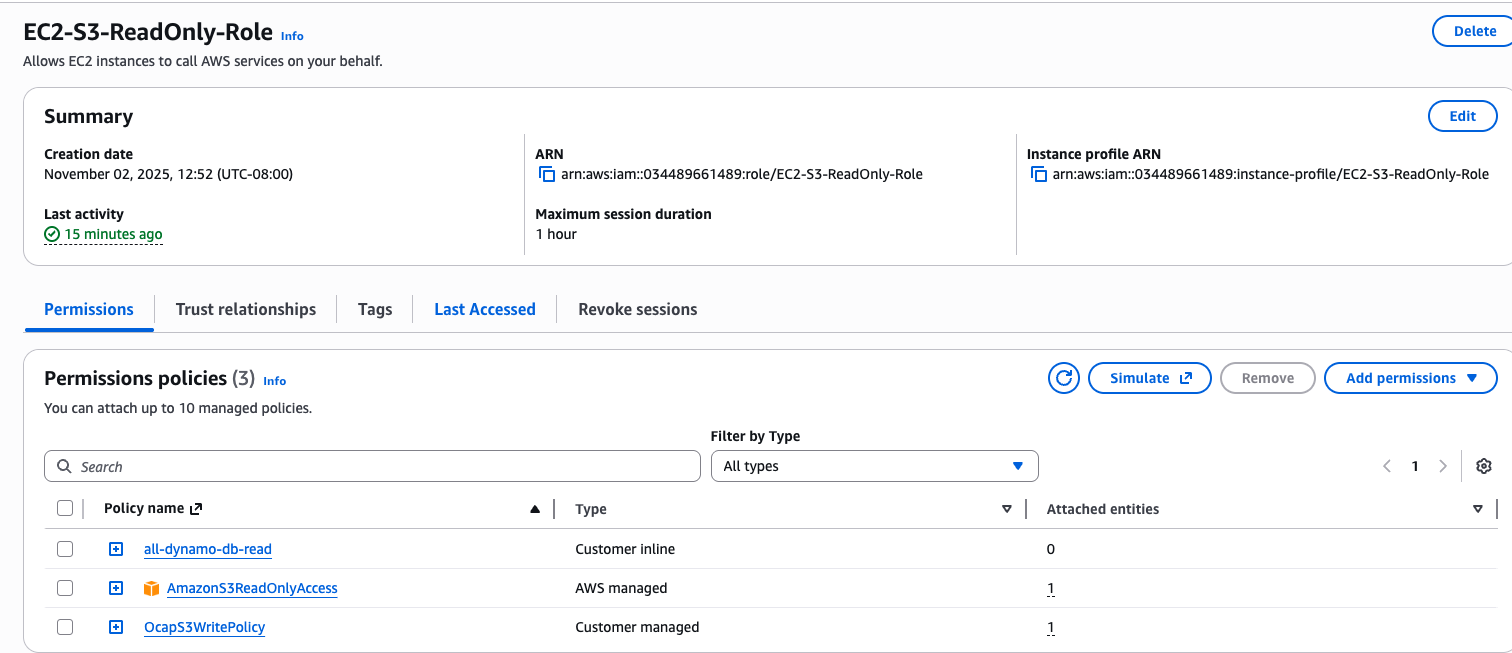

IAM Role Policies

This is my IAM permission. Note that "ReadOnly-Role" is a misnomer. This bad boy can 100% write stuff. Don't blame me, there's no edit name button and I can't be bothered to look for one.

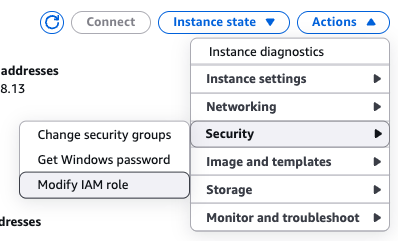

Attaching the Role to EC2

Attach your role to your EC2.

Attach IAM Role to EC2

Now, AWS will allow your EC2 to read and write to DynamoDB and S3, but it doesn't know it yet. Now we need to enable AWS tools on the EC2 itself.

Enabling AWS Tools

You need to install AWS tools for PowerShell on the EC2.

Install AWS PowerShell Module

Install-Module -Name AWSPowerShell -Force -AllowClobber

Run this to be sure it worked:

Verify Installation

Get-Module -ListAvailable -Name AWSPowerShell

You should see something like:

ModuleType Version    Name
---------- -------    ----
Binary     4.1.892    AWSPowerShell

Note - AWS Tools vs boto3

You might not need these AWS tools, because we're about to use a python library called boto3 which is extremely standard for python to interact with AWS services. But just in case you're going to be executing AWS commands from PowerShell, this is good to have.
