API Gateway and Testing

Navigate to API Gateway in AWS, and create a new one. Then select REST API.

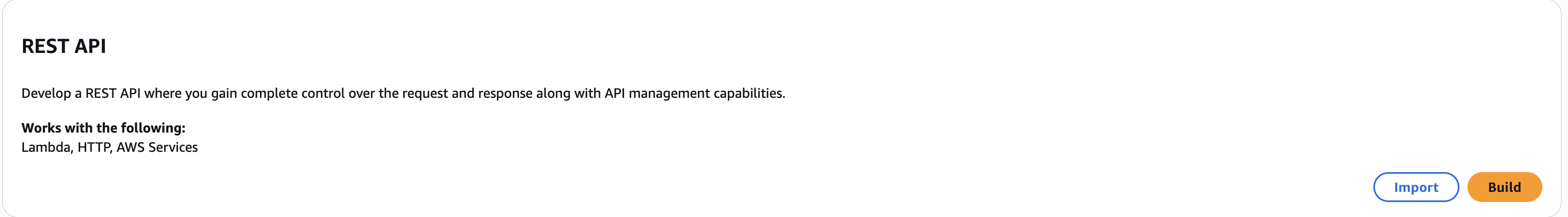

API Gateway Selection

API Configuration

Configure it like this:

  • Name it schedule
  • Go with any recommended security policy
  • Keep everything else default

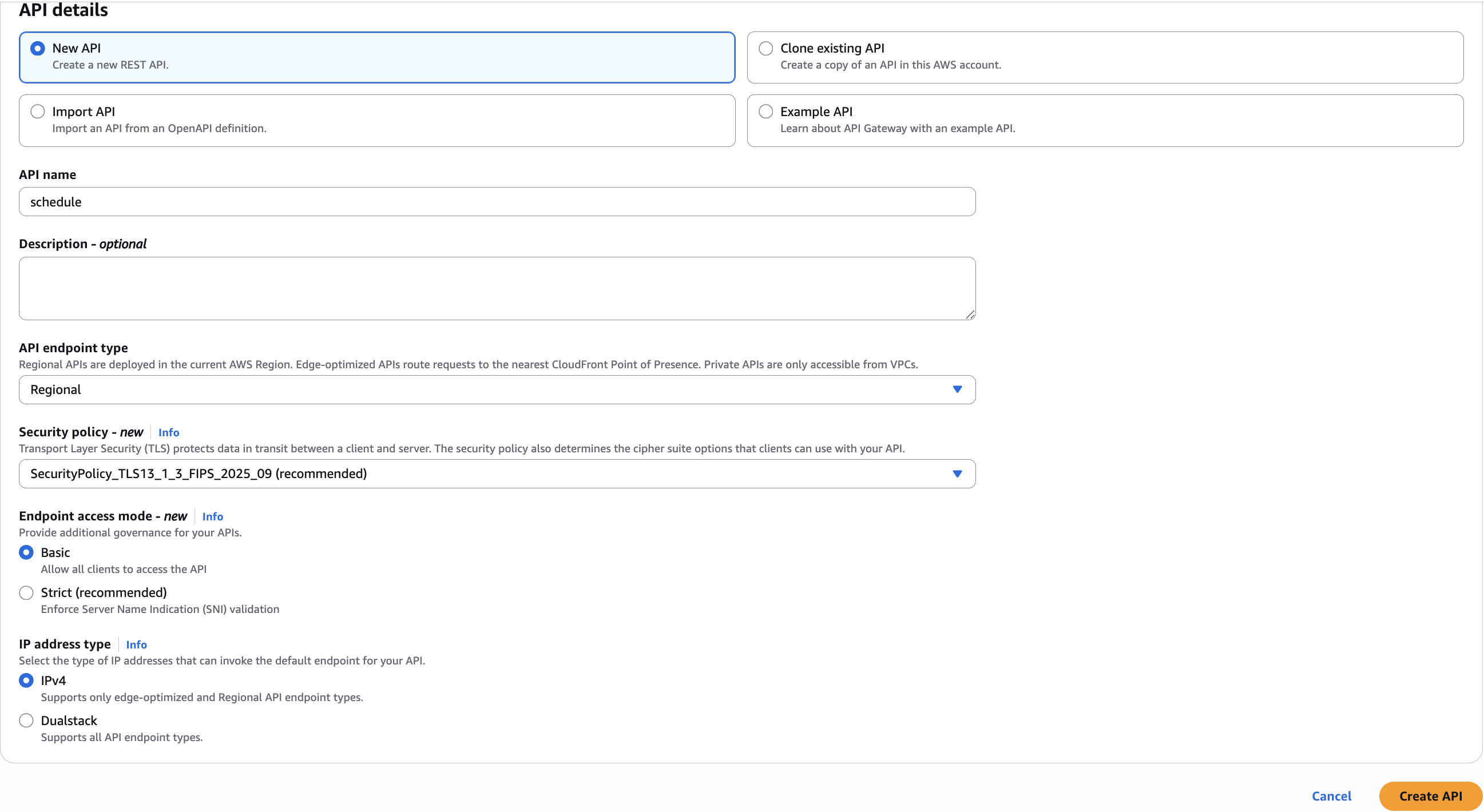

API Gateway Configuration

Creating the Resource

Now we need to create the actual endpoint (resource):

  1. In your API dashboard, click Actions > Create Resource.
  2. Resource Name: Enter schedule.
  3. Resource Path: This should auto-fill as /schedule.
  4. Check CORS.

Note - CORS (Cross-Origin Resource Sharing)

CORS is a browser security feature that blocks web pages from making API requests to a different domain. You 100% need it if you're calling the API from a frontend.

  1. Click Create Resource.

Creating the POST Method

Next, you need to create the POST method with this config:

  • Method type: POST
  • Integration type: Lambda
  • Lambda function: your region, and find the ARN for your Lambda

Note - ARN (Amazon Resource Name)

ARN is your service's unique ID across AWS services.

Once you've set that up, ensure that you've enabled CORS one more time. Just select the POST method in the menu and enable CORS in the top right. Then deploy the API. You'll have to probably define the environment you're deploying in, just call it prod.

API Gateway URL

Your API Gateway URL will follow this format:

https://{gateway-id}.execute-api.us-west-2.amazonaws.com/prod

Now if you replace API_GATEWAY_URL with your URL in this way, you'll be able to hit the POST method.

That's it. You should be able to schedule a meeting via the frontend, have it write to the database, and have an EventBridge scheduled task invoke the launch-ec2 Lambda function. Although we haven't set that one up yet, here's how you can test Lambdas.

Testing with CloudWatch

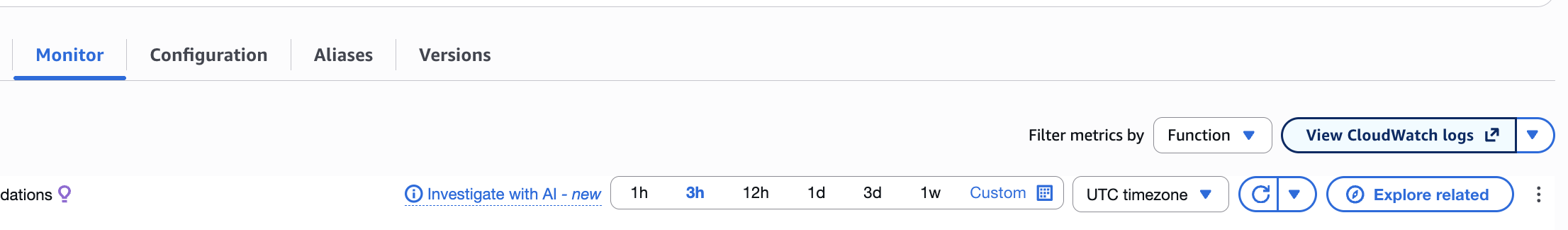

CloudWatch Logs

  • Go to Monitor, and then View CloudWatch logs. Every execution of the Lambda should have a log, and any print statements, plus built-in logs will display there.

Testing - CloudWatch Logs

If successful, you should see a line like:

Scheduling Launch for: 2025-11-30T22:23:00

Congratulations! You've completed Phase 3. You should now have a working API Gateway endpoint connected to your Lambda function, and be able to schedule meetings through the frontend.
