ElephantDNSWatchdog

This is the function that is going to wait for the state of the launched EC2's to change to "Running", and it's going to do this via a service called EventBridge (CloudWatch Events). We are also going to need to get the API token from Cloudflare and stick it in AWS Secrets Manager.

Note - Cloudflare Token Reference

Refer to the Getting a Token from Cloudflare section for instructions on obtaining and storing the Cloudflare API token.

EventBridge (CloudWatch Events)

Go to EventBridge. Then go to Rules on the left tab.

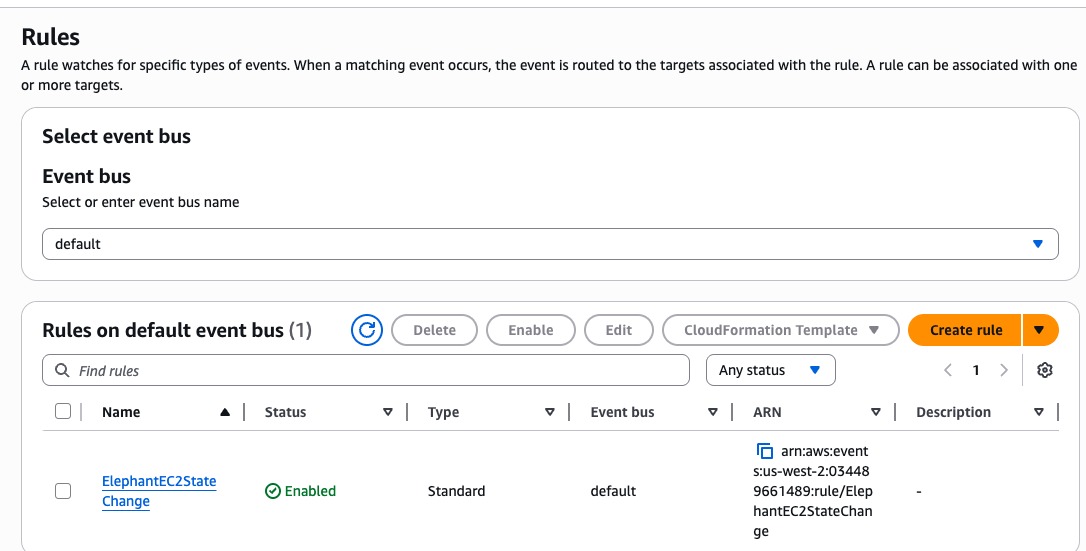

EventBridge Rules

Step 1: Create the Rule

  1. Click Create rule.
  2. Name: ElephantEC2StateWatch (or similar).
  3. Rule type: Select Rule with an event pattern.
  4. Click Next.

Step 2: Build the Event Pattern

This is the critical part. You want to filter for EC2 state changes but only for instances tagged for Project Elephant.

  1. Scroll down to Event pattern.
  2. Event source: AWS services.
  3. AWS service: EC2.
  4. Event type: EC2 Instance State-change Notification.
  5. Event pattern content: Click Edit pattern (JSON) and paste this exactly. This filters for "running" (to create DNS) and "shutting-down" (to delete DNS), but only if the instance has the tag Project: Elephant.
EventBridge Event Pattern
{
  "source": ["aws.ec2"],
  "detail-type": ["EC2 Instance State-change Notification"],
  "detail": {
    "state": ["running", "shutting-down"],
    "tags": {
      "Project": ["Elephant"]
    }
  }
}
  1. Click Next.

Step 3: Select the Target

  1. Target types: Select AWS service.
  2. Select a target: Choose Lambda function.
  3. Function: Select ElephantDNSWatchdog.
  4. Click Next, skip the tags screen, and click Create rule.

Awesome - EventBridge Automation

  • Startup: When your Launcher spins up an EC2 and tags it Project: Elephant, the instance enters the running state. EventBridge sees this and fires the Lambda. The Lambda sees "running", gets the IP, and creates the DNS record.
  • Shutdown: When your script runs shutdown (or you manually terminate), the instance enters shutting-down. EventBridge fires the Lambda. The Lambda sees "shutting-down", looks up the ID, and deletes the DNS record.

Pretty cool, right?

EventBridge Configuration

Environment Variables

Key Value
DOMAIN_ROOT your-domain
SECRET_ARN prod/elephant/cloudflare
ZONE_ID zone id from Cloudflare

Note - Environment Variables

You should be getting pretty much all of these from Cloudflare or your DNS provider.

Code Breakdown

Initial Setup
# Initialize Clients
ec2 = boto3.client('ec2')
secrets = boto3.client('secretsmanager')
http = urllib3.PoolManager()
dynamodb = boto3.resource('dynamodb', region_name='us-west-2')

# --- CONFIGURATION ---
SECRET_ARN = os.environ['SECRET_ARN']
ZONE_ID = os.environ['ZONE_ID']
DOMAIN_ROOT = os.environ['DOMAIN_ROOT']
TABLE_NAME = 'elephant-meetings'
  • Pretty standard at this point. Just variable setup.
Fetching the Secret
resp = secrets.get_secret_value(SecretId=SECRET_ARN)
return json.loads(resp['SecretString'])['CLOUDFLARE_TOKEN']
  • Fetch the secret from AWS Secrets Manager
Creating DNS Records
if action == 'CREATE':
    if not ip:
        print("Error: CREATE action requires an IP address.")
        return False

    print(f"Pointing {record_name} -> {ip}")
    payload = {
        "type": "A",
        "name": record_name,
        "content": ip,
        "ttl": 120,
        "proxied": True
    }

Note - A Record Explanation

Hey look! A payload. Yeah, we're sending to the Cloudflare API endpoint a payload with the certificate that we want to create. In this situation, we want to create an A certificate for the instance_id whose state changed. It'll be like i-abc123.

An A certificate is a specific kind of certificate in DNS. It basically just says "all traffic that hits this subdomain, just point it here." So if I create an A certificate for edmontonoilers.christardy.com, I can send anyone who hits that URL to https://www.nhl.com/canucks/. Sorry, Connor.

Database Update After DNS Creation
if action == 'CREATE_SUCCESS':
    # Status update after DNS record is created
    status = 'DNS_WRITTEN'

    # Construct the final DCV URL
    dcv_url = f"https://{instance_id}.{DOMAIN_ROOT}:8443"

    # Dynamically set the key based on the role
    url_field = f"{role}_ec2_link" # teacher_ec2_link or student_ec2_link

    print(f"DB WRITE: Setting status to {status} and saving URL {dcv_url}")

    try:
        table.update_item(
            Key={'id': meeting_id},
            UpdateExpression=f"SET #s = :new_status, {url_field} = :url",
            ExpressionAttributeNames={'#s': 'status'},
            ExpressionAttributeValues={
                ':new_status': status,
                ':url': dcv_url
            },
            ReturnValues="UPDATED_NEW"
        )
    except Exception as e:
  • This updates our DynamoDB after the A certificates have been created. At this point, we have a pretty nifty piece of data: we have a deterministic URL for how we're going to access the EC2 instance in the frontend. The format is basically:
DCV URL Format
https://ec2-id.domain.com:8443

Note - DNS Status

You'll see that our next Lambda will check to see if this URL is present. "DNS_WRITTEN" is a status that you can use for testing.

DNS Deletion on Shutdown
elif state == 'shutting-down':
    if update_dns('DELETE', record_name):
        update_db_on_dns_event(meeting_id, role, 'DELETE_SUCCESS')
  • This is the last piece that deletes the A certificate. When we terminate an EC2, it first shuts down, which prompts this watchdog function to delete the A certificates in Cloudflare.

Awesome - Stateless Lambda Intelligence

As you can see, the Watchdog is a particularly intelligent Lambda, because while Lambdas are serverless and stateless, this Lambda is always ready to receive events.

IAM Role

  • AWSLambdaBasicExecutionRole, pre-built by Amazon
  • SecretsManager read, which allows us to get the API token.
SecretsManager Read Policy
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "ec2:DescribeInstances",
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": "secretsmanager:GetSecretValue",
            "Resource": "arn:aws:secretsmanager:us-west-2:*:secret:prod/elephant/cloudflare-*"
        }
    ]
}
  • WatchdogUpdateItem, allows read/write to DynamoDB
WatchdogUpdateItem Policy
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "dynamodb:UpdateItem",
                "dynamodb:GetItem"
            ],
            "Resource": "arn:aws:dynamodb:us-west-2:034489661489:table/elephant-meetings"
        }
    ]
}

Next: Frontend Implementation →
